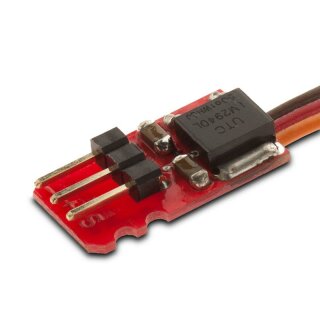

SBEC for DS6125mini, DS6125h 1.5A

SBEC for DS6125mini, DS6125h 1.5A SBEC for DS6125mini, DS6125h 1.5A SBEC for DS6125mini, DS6125h 1.5A SBEC for DS6125mini, DS6125h 1.5A
  • Item no.: O0009002
Manufacturer:
Category:

Description

for DS6125MINI / DS6125H / DS6100 / DS65K

  • Input voltage: 5.1V - 8.4V
  • Output voltage: 5.0V0.1V
  • Output maximum current: 1.5A
  • Maximum working temp: 70 C
  • Wire lenght: 12 ore 7 cm
  • Weight: 2.45 g

Function:

1. A dedicated SBEC per servo can protect the rest of the servos , and the receiver in case of abnormal situation like a servos blocked because of the control surface, or an unlikely malfunction of the servos.
2. Regulating the output current and avoid the servo overloading.
3. When using Lipo 7.2~8.4V, the SBEC can provide stable voltage to the servo.
4. Linear mode; No interference.
