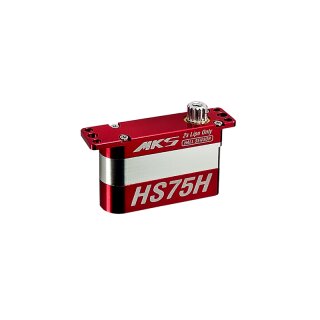

The HS75H is equipped with Hall sensors. Especially suitable for glider models of the classes F3K/F5K/F5J.
Operation only on 2S Lipo or not less than 4V! Torque (kg-cm): 2.7 (4.8V) / 3.4 (6.0V) / 3.8 (7.4V) / 4.0 (8.2V) Torque (oz-in): 37.5 (4.8V) / 47.2 (6.0V) / 52.8 (7.4V) / 55.5 (8.2V) Speed: 0.143 s (4.8V) / 0.114 s (6.0V) / 0.094 s (7.4V) / 0.087 s (8.2V) Working Voltage: 4V - 8.4V V Working Frequency: 1520μs / 333Hz Dead Band: 0.001 ms (Default) Bearing: 2*Copper Bushings Gear: Metal Alloy Gear Motor: Coreless Motor Weight: 7.9 g (±0.3 g) / 0.28 oz (±0.01 oz) Dimension: 23.75 x 7.5 x 16.1 mm Wire length: 15cm
