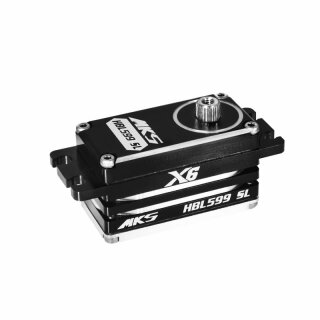

HBL599SL HV Digital Servo brushless X6 Serie

HBL599SL HV Digital Servo brushless X6 Serie

Artikelnummer: S0026006
GTIN: 4710150350691
Kategorie: 20mm Servos
Hersteller: MKS

Unverbindliche Preisempfehlung des Herstellers: 161,99 €

Beschreibung
Frage zum Artikel

Ideal for 1/10 surface applications.
Combining full metal gears, case and amazing speed.
The low-profile dimensions makes it perfect for any vehicle that is cramped for space.
CNC Machined Metal Case Design for Exceptional Cooling.
HD 4096 Resolution, 0.008ms Dead Band.
Superior Holding Torque, Japanese Brushless Motor.
High speed, incredible efficiency, and low power consumption than comparable servos.

Specifications:

Torque: 16 kg/cm (4.8V) - 18 kg/cm (6.0V) - 23 kg/cm (7.4V)
Speed: 0.14s (4.8V) - 0.11s (6.0V) - 0.09s (7.4V)
Weight: 53.5 g
Dimension: 40.5 x 20.5 x 23.1 mm
Working Voltage: 3.5 - 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency: 1520µs / 333Hz
Dead Band: 0.0008 ms
Bearing: 2BB
Motor: Japan High Quality Brushless Motor
Gear: Chrome-Titanium alloy gear

Servodicke:	20mm
Servospannung:	max 8.4V
Servotyp:	Car Servo
